Series 200 Chain

Request A Quote
The chain is made of uniformly heat-treated components. Although light in weight, it has an assembled tensile strength in excess of 3,000 pounds. Side and pendant links are made of high tensile steel and all chain is thoroughly inspected and lubricated before packaging.  Chain is sold in 10’-0” increments and shipped in 10’-0” or 50’-0” lengths and weighs 1.3 pounds per foot.

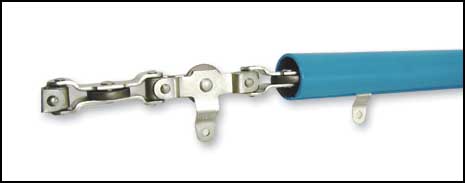

Chainveyor Series 200 Overhead Conveyor

SPECIFICATIONS:

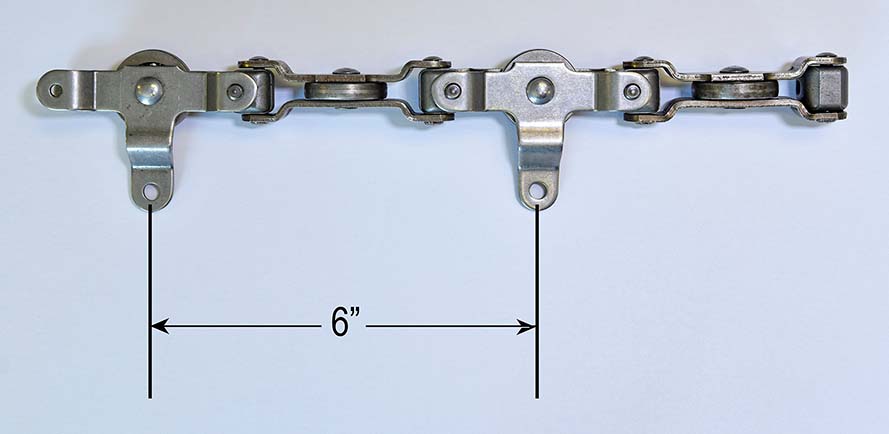

  • Chain/Load Pitch: 6″
  • Capacity: 30 lbs. per pendant, 60lb./ft.
  • Chain Pull: 600 lbs. recommended maximum
  • Tensile Strength: 3000 lbs.
  • Maximum Operating Temperature: 450°F
DESCRIPTION WEIGHT
Chain 10 ft. long 13
Plated Chain, 10 ft. long 13
